In this discussion we will focus on the overall PRINERGY Portal User Interface.
After you log in to PRINERGY Portal, you are greeted with the following screen. There are many components to the login screen, let's take a minute to get familiar with the options.

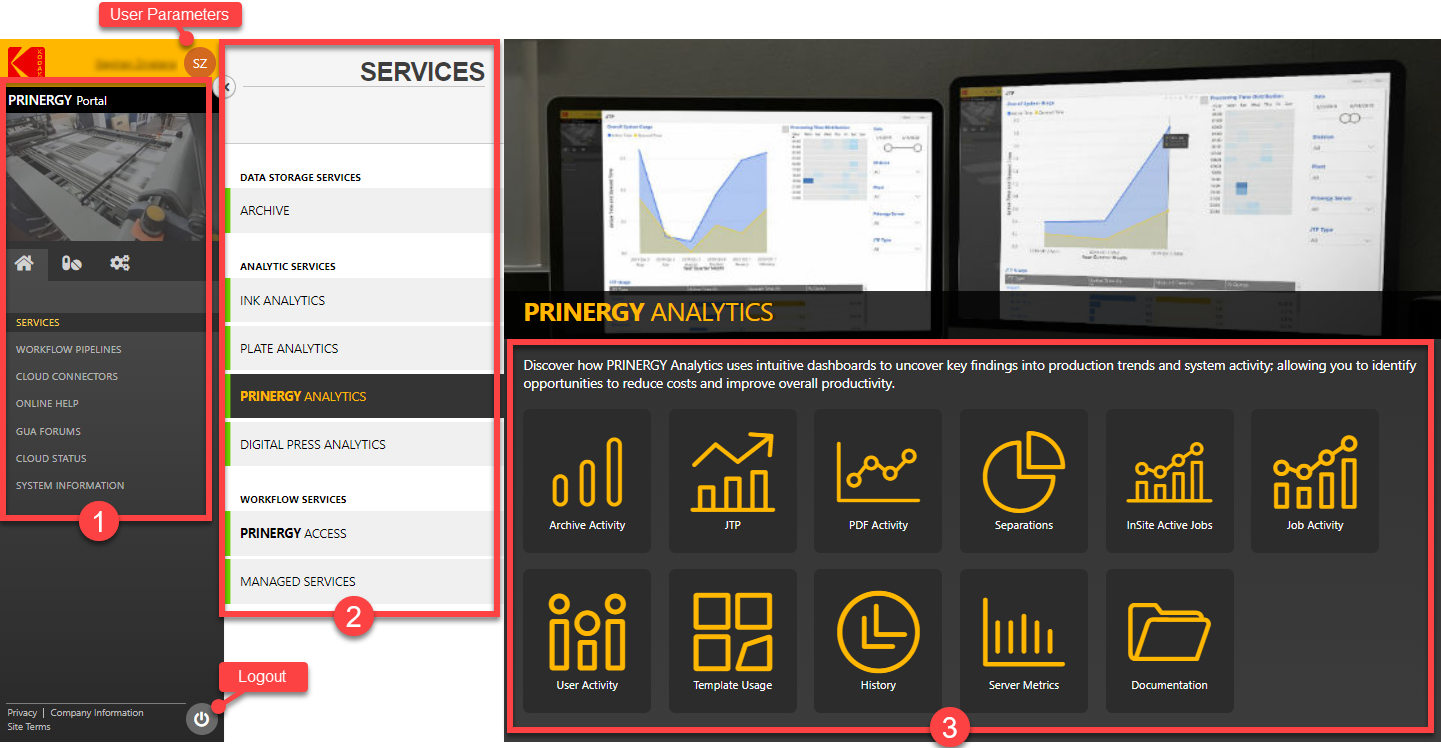

The BIG Picture:
| Item | Description |
|---|---|
| 1 | Control Pane - access to all top level information and configuration functions within PRINERGY Portal |
| 2 | Services Pane - shows all available Services within PRINERGY Portal |
| 3 | Services Dashboards - shows all dashboards (as tiles) available for a selected Service |
| User Parameters | Displays User Info, including Email Notification Subscriptions, Portal Roles and Access Roles |
| Logout | Allows the User to Logout of PRINERGY Portal |
Control Pane
The Control Pane is the launch pad for all information and configuration capabilities within PRINERGY Portal.
Here you are able to navigate from the top level Home Tab, to Resources Tab and Administration Tab.
Some items may not be available, based on your assigned Role or access levels.

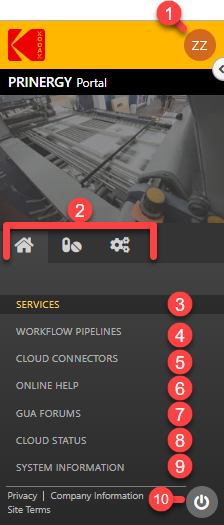

Control Pane - Home - Default view
| HOME Tab | |
|---|---|
| 1 | User Parameters |
| 2 | Configuration Tab Selectors |
| 3 | Services (default view) |
| 4 | Workflow Pipelines |
| 5 | Cloud Connectors |
| 6 | Online Help |
| 7 | GUA Forums |
| 8 | Cloud Status |
| 9 | System Information |
| 10 | Logout |
For more information:
- Dashboard Introduction...
- Visualization Toolbar - tools available to find more information
- Dashboard Types - what type of visual are shown within the dashboards
- Filters - details in which to hone (focus) the details within the dashboards
