  1. Perform one of the following actions:
    • From the File menu, select Import > Artwork.
    • In the Pandora toolbar, click the Import Artwork icon .
  2. In the Import Artwork dialog box, locate where you are storing the sample activity files.
  3. Locate the Neck Label folder. Select the Neck Label.pdf file. Click Open.

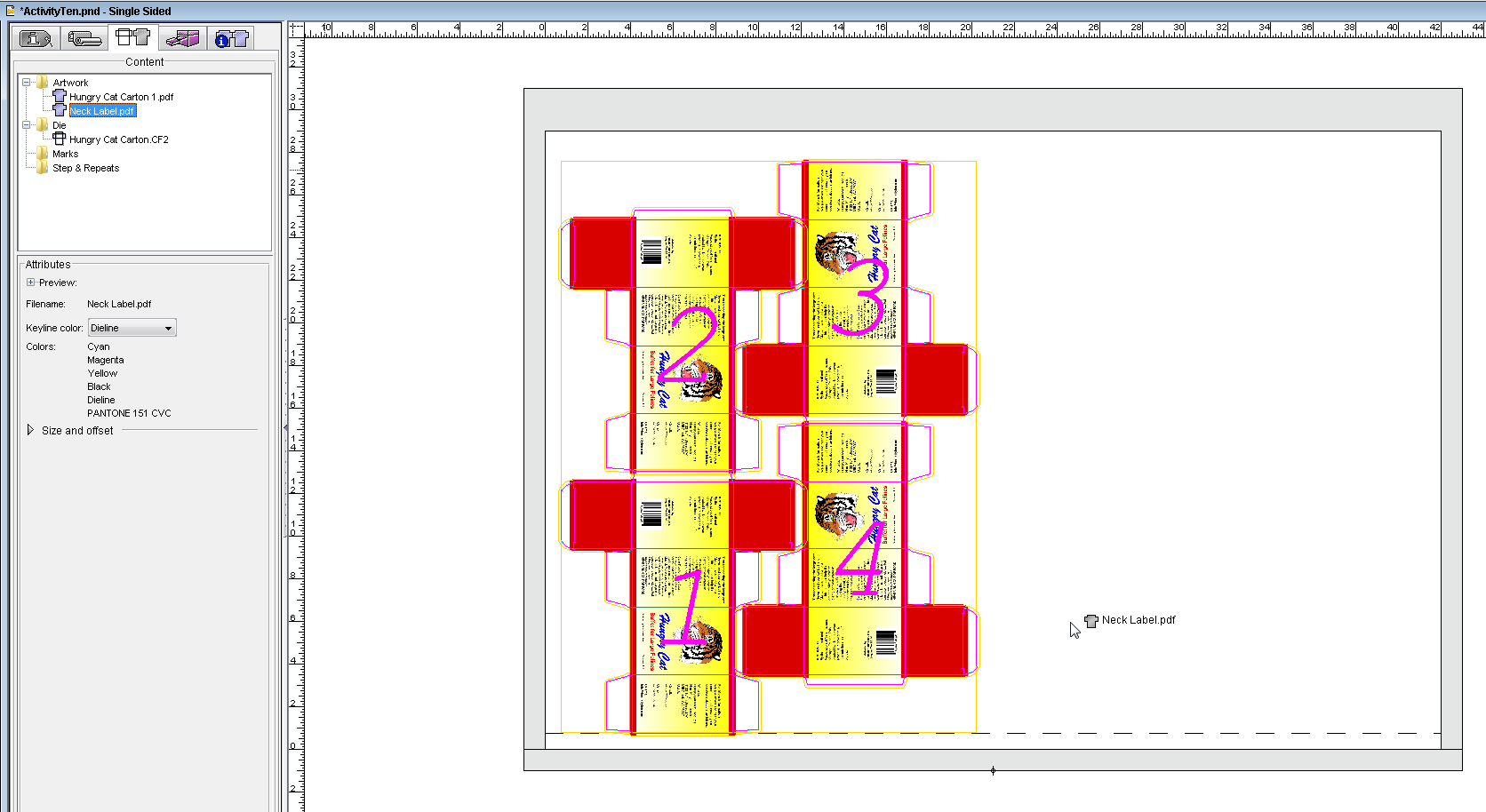

  4. Drag the Neck label.pdf file into the layout view.

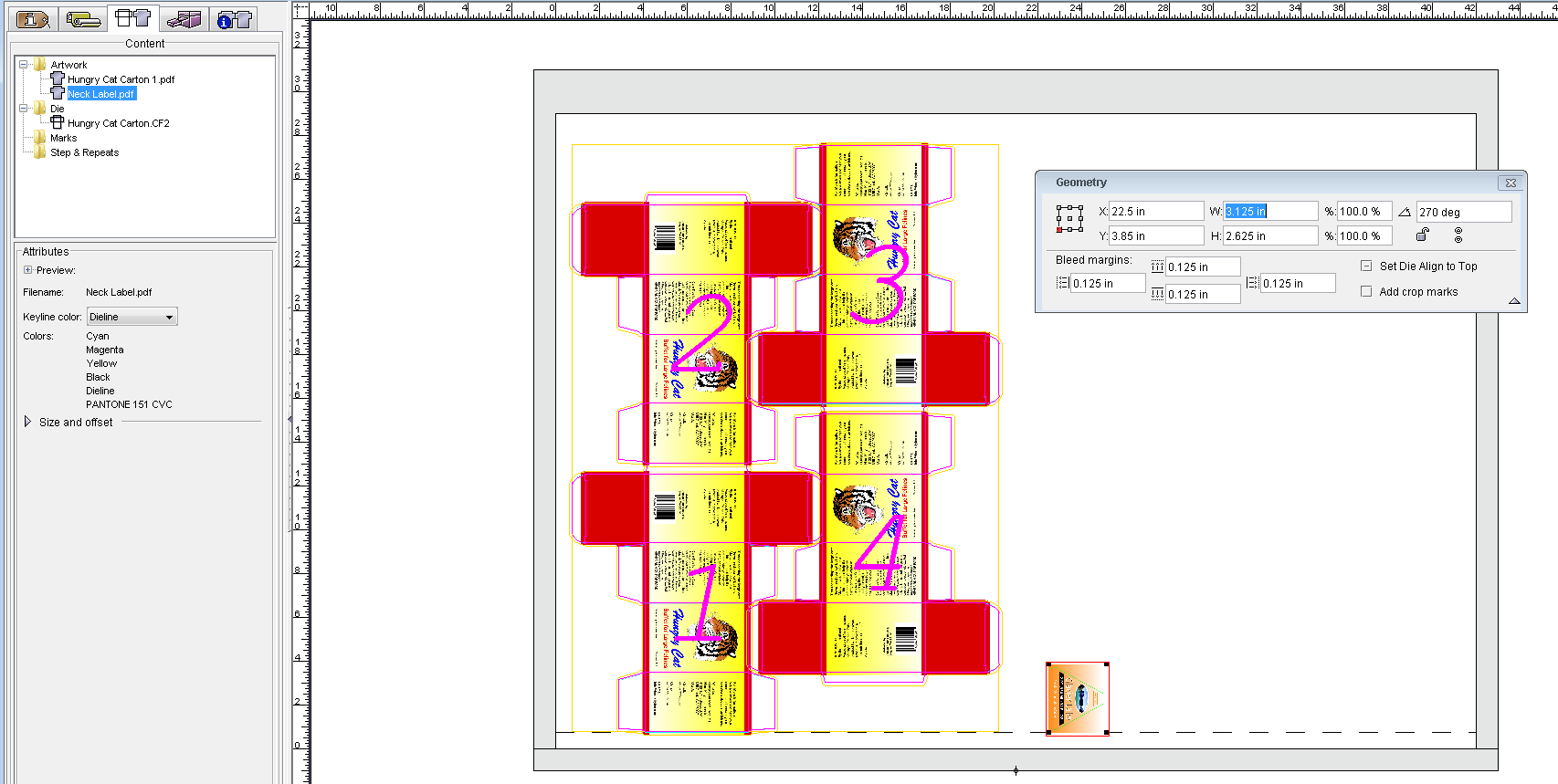

  5. If it is not still open, from the Window menu, select Show Geometry Palette.
  6. In the reference point diagram, select the lower-left point.
  7. In the Rotation box, type 270.
  8. In the X box, type 22.5 in. (571.5 mm).
    In the Y box, type 3.85 in. (97.8 mm).
  9. Press Enter.


  10. Perform one of the following actions:
    • From the Edit menu, copy and paste a second version of the pdf artwork.
    • Right-click and select Copy. Then right-click and select Paste.
  11. With the second copy of the artwork still selected, in the Rotation box of the Geometry palette, type 90. (Or, right-click and select Rotate 90 degree.)
  12. Using the Zoom and Selection tool (or arrow keys), position the second copy of the label directly above the first. Align both artworks so that edges are touching.

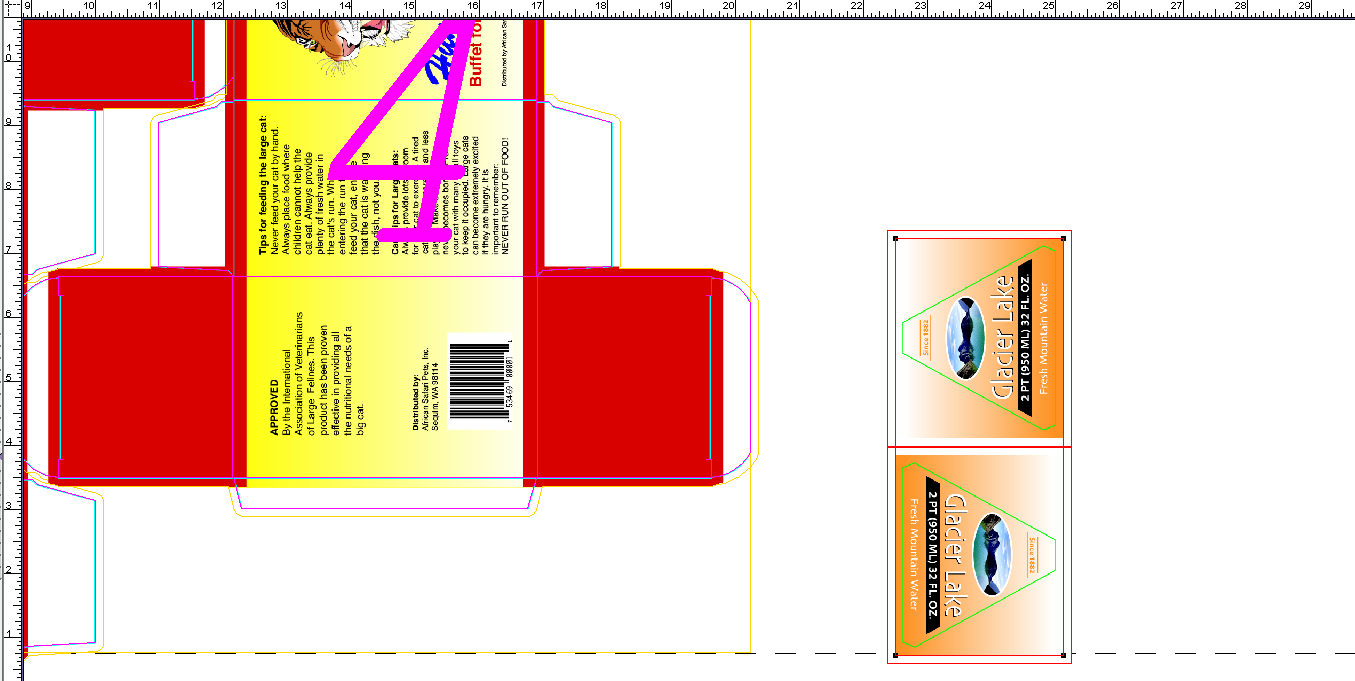

  13. With both objects selected, select Object menu > Group.
