Create rule set 3: Delete and send e-mail

This rule set deletes a PDF page if it is rejected. An e-mail message will be sent with the rejected page attached.

1. On the Events tab, locate Page Rejected: Prinergy Events > Page Events > Page Approval Changed > Page Rejected.
2. Drag Page Rejected to the workspace.
   This event will start the rule.
3. On the Actions tab, locate Email: System Actions > Email
4. Drag Email to the action icon (center of the green box).
5. Double-click the red line separating the Page Rejected event and the Email action.
6. In the To box, select the prepress_operators_emails global variable that you created earlier in the Define a global e-mail address variable task:
   1. In the To parameter row, under Value, click the red text (Enter a Value). Then, to open the Email : To parameter value editor, click the Edit Value (...) button on the right.
   2. Click the Variables tab.
   3. Expand the Global Variables list.
   4. Select the prepress_operators_emails variable, and click OK.
      Note: If you did not complete the Define a global e-mail address variable task, type your own e-mail address.
7. Click the red text (Enter a Value) in the Subject box. Type a subject line.
8. Click in the Body box, and type any text that you want to appear in the body of the e-mail.

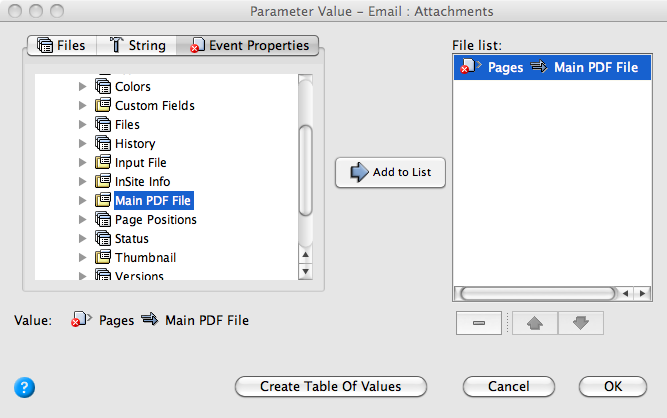

9. Click in the Attachments box.Click the Edit Value icon to access the Parameter Value dialog box.
10. In the Parameter Value dialog box, select: Event Properties > Pages > Main PDF File
    This attaches the rejected PDF page to the e-mail message.
11. Click the Add to List button. Click OK.




12. In Rule Parameters Editor, click OK.
13. On the Actions tab, locate Delete Page: Prinergy Actions > Page Actions > Delete Page
14. Drag Delete Page to the resulting Sent event.


    The Sent icon represents a resulting event linked to a completed action, in this case, the completed action is that the e-mail has been sent.
