  1. On the Events tab, locate Separation Approval Changed: Prinergy Events > Imposition Events > Separation Approval Changed
  2. Drag Separation Approval Changed to the workspace. When separations are approved, this event will start the generation of final output TIFF files.
  3. On the Flow tab, locate the Branch action.



  4. Drag the Branch action to the Action icon (center of the green box).



  5. Double-click the red line separating the event and the action.
  6. In the Branch Editor dialog box, select New Status > Approval State——is——Approved in the conditions lists.
  7. Click OK.



    The branch action allows further actions to happen if separations are approved or not. The branch is waiting to receive a decision of either yes or no.

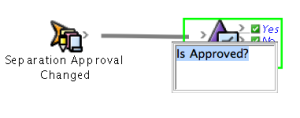

  8. Select the text Branch under the Branch action. Change the text to Is Approved?


    Tip: Remember that this Branch action has been renamed! When renaming actions and events in RBA, be aware that if you search for an item at a later time, you must search using the new name, not the original name.
  9. On the Actions tab, locate Perform Final Output: Prinergy Actions > Imposition Actions > Perform Final Output

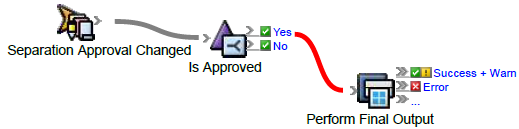

  10. Drag Perform Final Output to the resulting Yes event.



  11. Double-click the red line separating the event and the action.
  12. In the Process Template Path box, click the Edit Value icon (...).
  13. In the Parameter Value dialog box, select <XX>_Final_Output_Temp. Click OK.



  14. In Rule Parameters Editor, click OK.
