  1. In the top bar of the Console, click the Resources tab.
  2. Under Resources, select Paper Stock.
    Note: The Paper Stock table is divided into three columns Substrate, Weight, and Format. When you define a new paper, follow the order of these tabs.
  3. To define a new substrate, in the Substrate column, click the Add new   button.

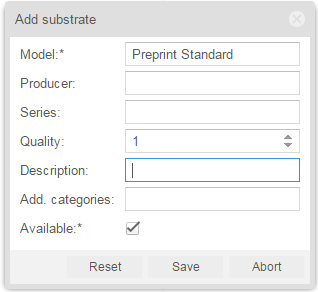

  4. In the Add Material dialog box that appears, in the Model box, type Preprint standard.



  5. Click Save.
    A new substrate appears in the Substrate column.
  6. Select the new paper (substrate), and in the Weight column, click the Add new   button.

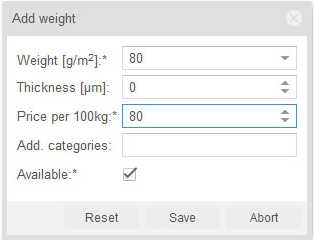

  7. In the Add Weight dialog box that appears, in the Weight box, type 80.
  8. In the the Price per 100kg box, type 80.
    Note: For the most effective calculation any costing information should be entered.



  9. Click Save.
    You have now created one weight-entry for your substrate.
  10. Select the new weight entry and in the Format column, click the Add new   button.

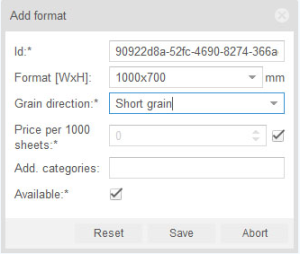

  11. In the Format box, type 1000x700 (The longer side should always appear first).
  12. In the Grain direction list, select Short grain,



  13. Click Save.
    A new format appears in the Format column.
  14. To save all changes, in the lower-right part of the screen, click Save.
  15. In the confirmation message that appears, Media were saved, click OK.
  16. You have created a new paper (substrate), a new weight for that substrate, and one format for that weight for that substrate.
