Objective 5—Step and Repeat the second piece of artwork

In the Content tab, select the Hungry Cat Label 2.pdf artwork.

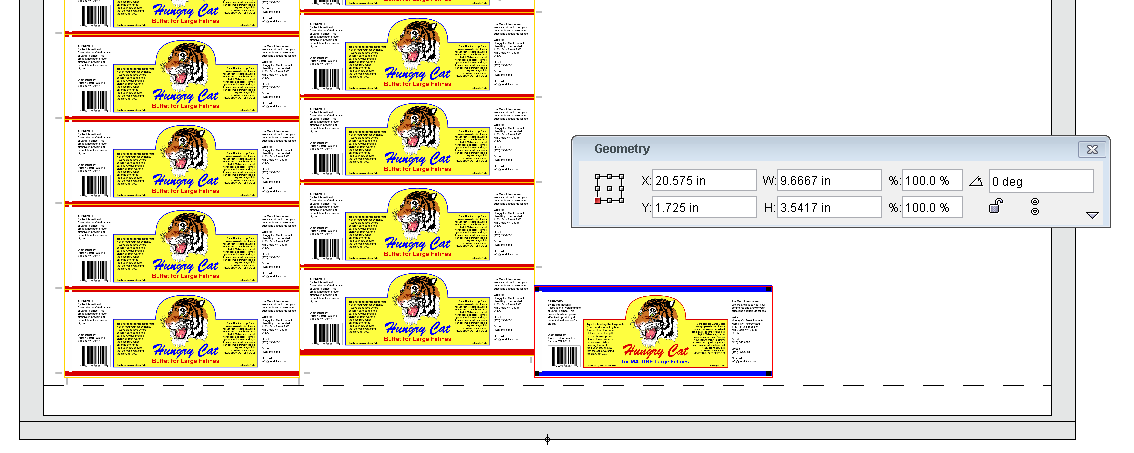

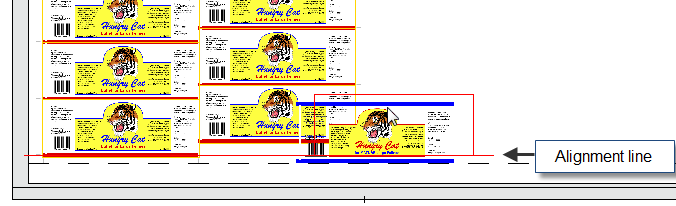

Drag Hungry Cat Label 2.pdf onto the substrate to the right of the first Step and Repeat and use the alignment tools (red lines that appear as you get close to adjacent objects) to position the artwork:
- Immediately flush on the left side
- Aligned vertically with the left-most artwork of the first Step and Repeat. The horizontal value should read 20.575.
Perform one of the following actions:
- Right-click and select Step & Repeat.
- From the Object menu, select Step & Repeat.

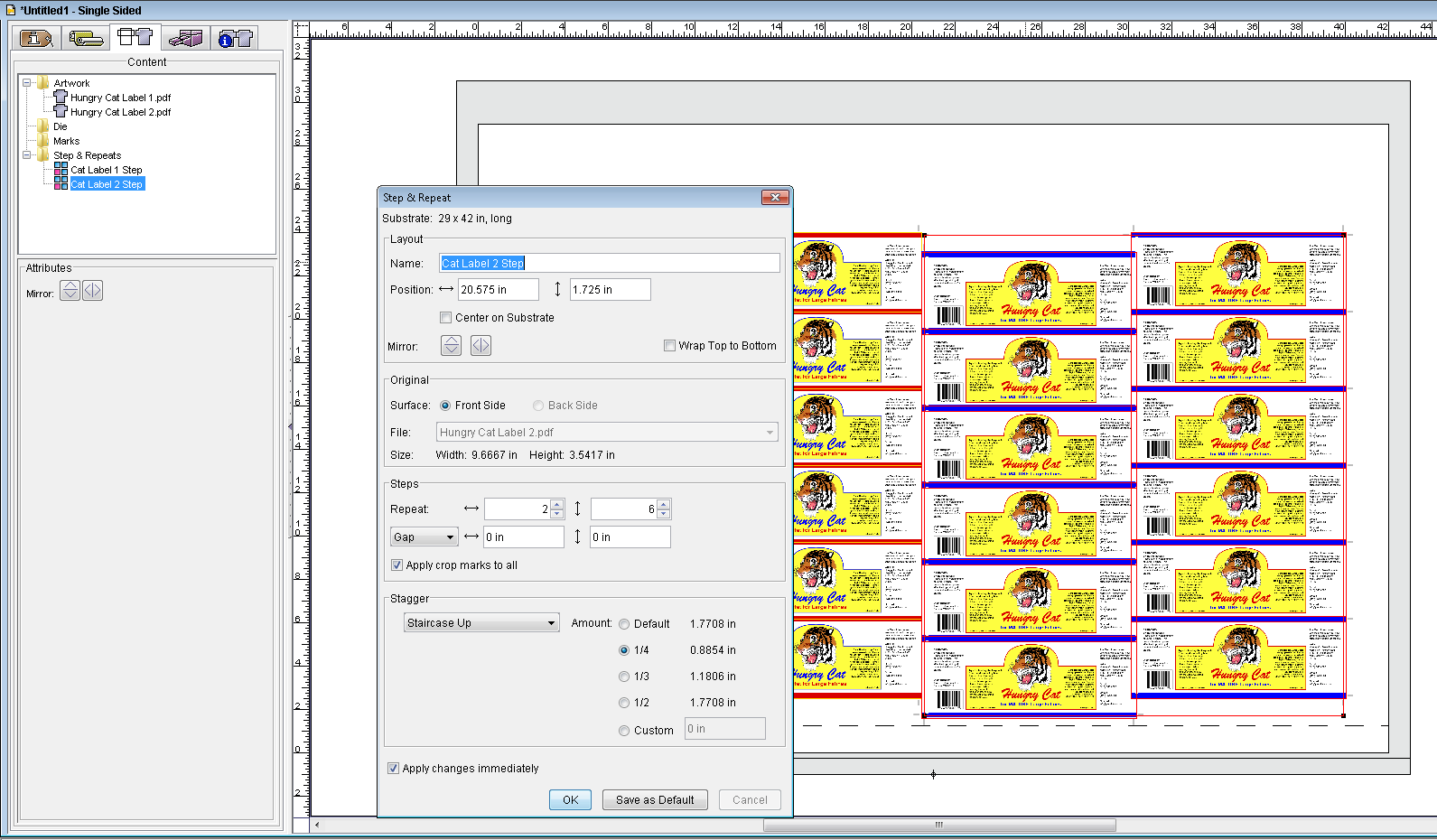

In the Layout section of the Step & Repeat dialog box, in the Name box, type Cat Label 2 Step.
Click OK.

Notice Cat Label 2.pdf is stepped and repeated using the same gap measurement, and number of repeats and position settings as Cat Label 1.pdf.
From the Object menu, select Resolve Rectangular Bleeds.
