To create a new parameter set

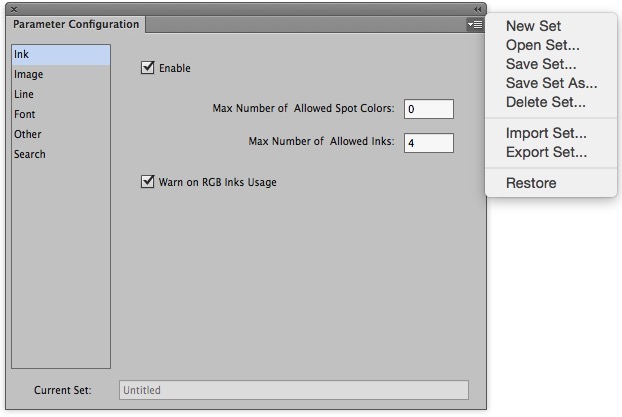

In the Parameter Configuration interface, from the side menu, select New Set. In the Parameter Configuration window, the current set name will change to Current Set: Untitled. All settings and parameters will be returned to the default values.
To open an existing parameter set
- In the Parameter Configuration interface, from the side menu, select Open Set.

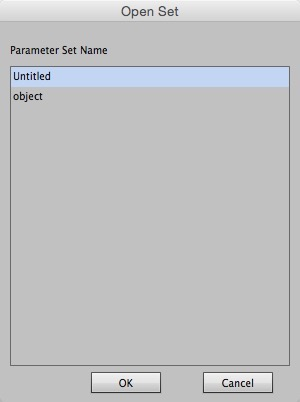

The Open Set window appears. - Select the parameter set file from the list shown.
- Click OK.
In the Parameter Configuration window, the current set name will change toCurrent Set: (name of the selected file)
To save a parameter set
Perform one of these actions
In the Parameter Configuration interface, from the side menu, select Save Set.

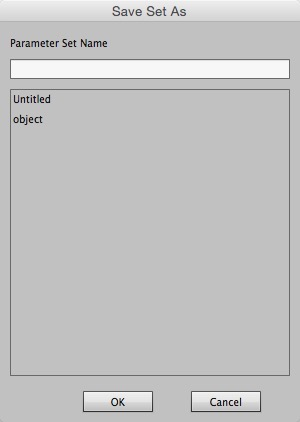

The update settings will be saved into the current parameter set.In the Parameter Configuration interface, from the side menu, select Save Set As.
The file saving dialog box will be displayed. Enter a name into the text field and click OK.
In the Parameter Configuration window, the current set name will change toCurrent Set: (name of the current file)
To delete a parameter set
- In the Parameter Configuration interface, from the side menu, select Delete Set.

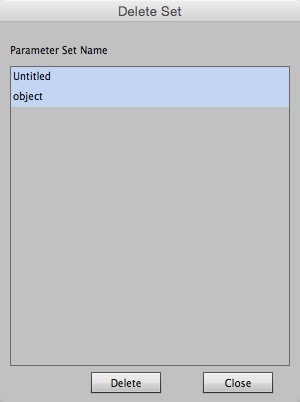

- In the Delete Set dialog box, select one or more parameter set files and click Delete.
- Confirm the deletion.
To import a parameter set
- In the Parameter Configuration interface, from the side menu, select Import Set.

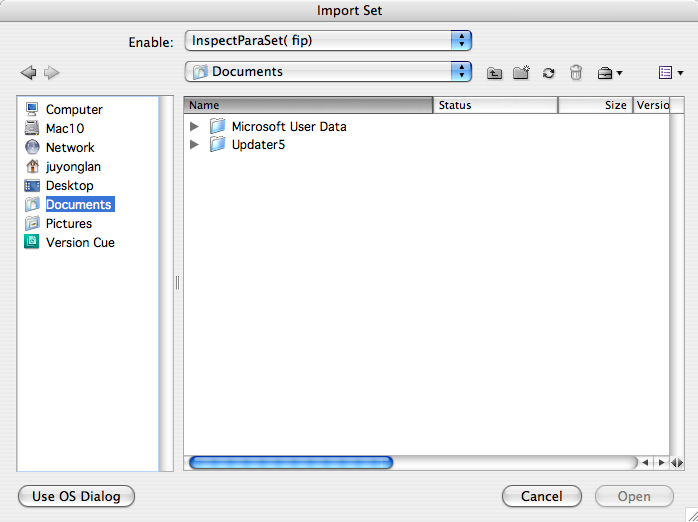

- In the Import Set dialog box, navigate to the directory containing the parameter configuration file, select the file, and click Open.
To export a parameter set
- In the Parameter Configuration interface, from the side menu, select Export Set.

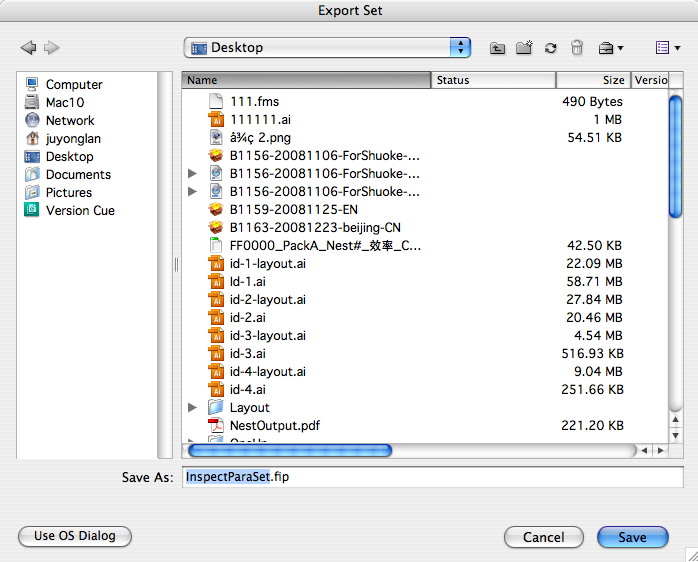

- In the Export Set dialog box, navigate to the directory in which you want to save the parameter configuration file and click Save.
To restore the modified current parameter set to the last saved set containing the original properties and parameters
In the Parameter Configuration interface, from the side menu, select Restore. In the Parameter Configuration window, the current set name will change to Current Set: (name of the current file).
If you update the properties and parameters, the set name will change to Current Set: (+ name of the current file).
with an additional plus sign to indicate that the set has already been updated.
