In this activity, you will use the Preflight+ option to preflight your input files and normalized files. You have a repeat customer who provides you with a variety of input files. You want to verify the stability of these files using the preflight+ profiles applied during the refine process. As part of the standards of your shop, no fonts can be TrueType, and any spot colors need to be converted to process (CMYK). In this activity, you will analyze and fix the files and generate a report in a PDF format.

Note: If you have already performed the Use the Advanced Preflight option to preflight an input file with profile-based preflight during refine activity, you can start with Task 4: Create a preflight+ profile using the Callas pdfToolbox.

• Create a job
• Copy an input file to the job folder
• Add the input file to the job
• Create a preflight+ profile using the Profile Manager
• Refine the input file using the preflight+ profile
• Review the preflight report

Create a job

1. If it is not already open, start Prinergy Workshop.
2. In Job Finder, right-click your main group, and choose New Job.
3. Type the job name XX_Advanced_Preflight (where <XX> represents your initials).
   Note: If you performed Activity 7 (Use the Advanced Preflight option to preflight an input file with profile-based preflight during refine), this job is already created and you can use it for this activity as well (You only need to delete the existing subpages).
4. Click Create.
5. Minimize the Job Manager window.

Copy an input file to the job folder and add input files to the job

1. From your workstation, locate: Prinergy Activity Practice Files / Act_07_Preflight / Input File
2. Restore Job Manager.
3. Open the Input File folder.
4. Drag the Wells Brochure.ps to the Job Manager's Input Files area.
5. In the Add Input Files dialog box that appears, under Options, clear the Process Selected Files Using Process Template check box.
6. Click OK.
   Your file is copied to the UserDefinedFolders folder.
7. Minimize the Job Manager window.

Create a preflight+ profile using the Profile Manager

1. From the Tools menu, choose Preflight+ Profile Manager.
2. In the Preflight+ Profile Manager window, click Add.

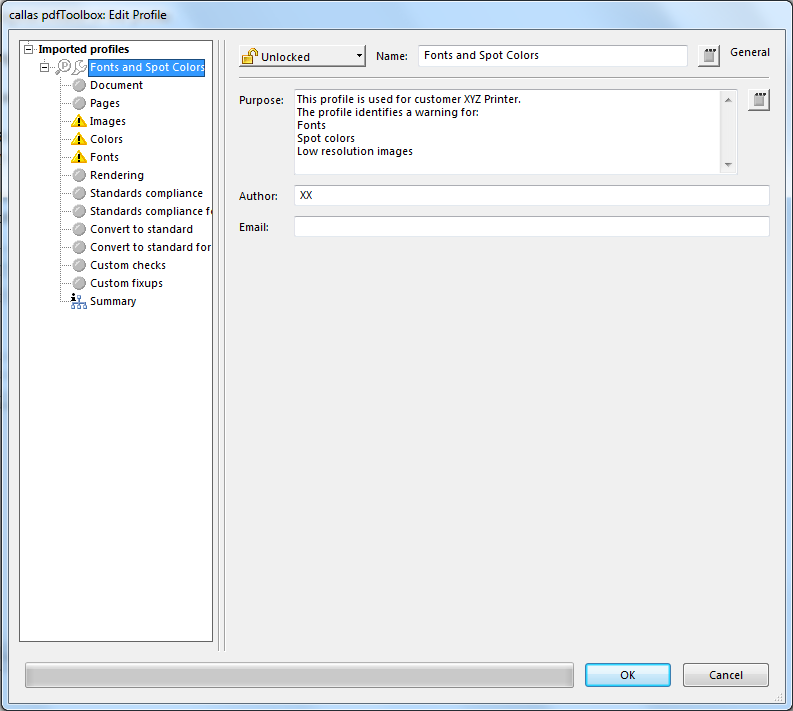

3. In the callas pdfToolBox: Edit Profile window, in the Name box, type Fonts and Spot Colors.
4. In the Purpose box, type the following:
   This profile is used for customer XYZ Printer.
The profile identifies a warning for:
Fonts
Spot colors
Low resolution images
5. In the Author box, type your name. This specifies the original creator of the profile.
6. In the left pane,select Fonts.
7. Under Font type is, in the TrueType list, select Warning.
8. In the left pane, select Colors.
9. In the Objects on the page use spot colors whose name is list, select Warning.
10. Make sure that the in this list option is selected.
11. Add the following spot colors to the list: PANTONE 1615 C, PANTONE 313 C, and PANTONE 554 C.
    Note: Manually type the colors into the list, separated by a carriage return (do not use the add button).
    1. In the left pane, select Images.
12. Under Resolution of color or grayscale image is, in the lower than list, select Warning, and in the lower than box, type 150.
13. In the left pane, under Imported profiles, select the profile that you have created. Review all settings and add any further information to the Profile Description box.




14. Click OK.
    Your new profile appears under Customized profiles.

Refine the input file using the preflight+ profile

1. In the Input Files pane, right-click Wells Brochure.ps , and choose the process template: Refine > Refine > 1stRef-Normz

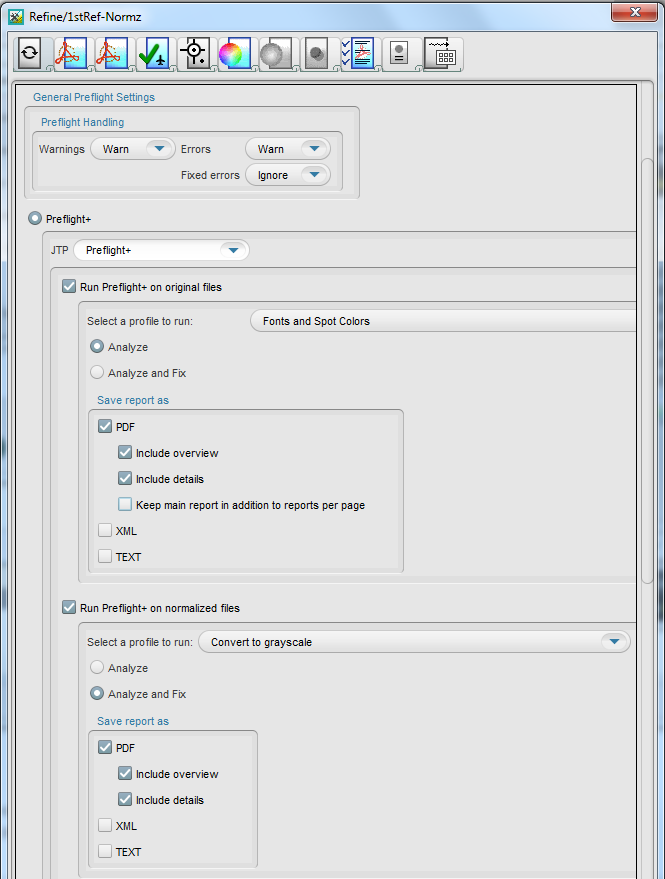

2. In the Start Process dialog box, click the Edit Process Template button.
3. Place a check mark beside PDF Preflight and open the section.
4. In the Warnings list, select Warn.
5. In the Errors list, select Warn.
6. Make sure that the Preflight+ option is selected.

7. In the Run Preflight+ on original files area, in the Select a profile to run list, select the profile that you created earlier, Fonts and Spot Colors.
8. Select the Analyze option.
9. Make sure that the Include overview and Include details check boxes are selected, so that the PDF will include all the required information.
10. Clear the Keep main report in addition to reports per page check box, to save space on your server.
11. In the Run Preflight+ on normalized files area, in the Select a profile to run list, select the Convert to grayscale profile.
12. Select the Analyze and Fix option.
13. Make sure that the Include overview and Include details check boxes are selected, so that the PDF will include all the required information.




14. Close the PDF Preflight section.
15. Place a check mark beside ColorConvert.
16. Place a check mark beside Spot Color Handling and open the section.
17. Under Map Spot Colors, select the Enable Spot Color Mapping check box, and then select the Map All Spot Colors to Process option.
18. Click OK.
19. In the Start Process dialog box, click OK.
    Note: Editing this process template is temporary. When you modify a process template in this way, any changes to the process template are discarded when the process is complete. The changes do not affect the original process template and are not saved with the job. You cannot redo the same process without making the same changes to the process template again.

Review the preflight report

1. Review all issues identified during the preflight process.

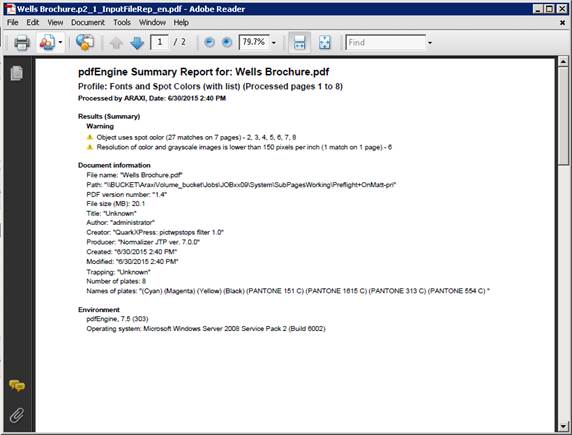

2. In the Pages pane, select Wells Brochure.p2.pdf and from the Jobs menu, select Preflight+ Input File Report Viewer.
3. View that the Input file report indicates that a low-res image and spot colors were detected (as per the input profile that you created).

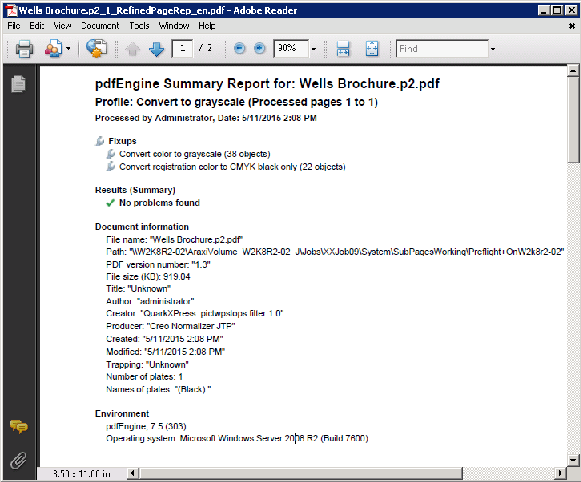

4. In the Pages pane, select Wells Brochure.p2.pdf and from the Jobs menu, select Preflight+ Refined File Report Viewer.
5. View that the reports indicate that the files are now displayed in grayscale.
