  1. In Job Manager, right-click the Input Files pane and choose Add Input Files.
  2. In the Add Input Files dialog box, select Job Folder and locate UserDefinedFolders/Input Files/Type Brochure.pdf.
  3. Select Type Brochure.pdf, and click the Add Selected button to add the file to the Files to Add list.
    Note: In the Options section, verify that the Process Selected Files Using Process Template check box is cleared.
  4. Click OK.
  5. With the Pages pane selected, from the View menu, select Visible Columns. Select the Orientation column, and click OK.

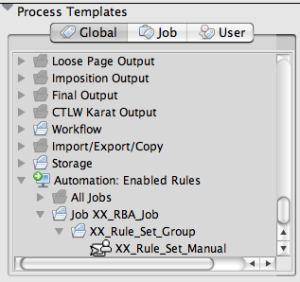

  6. In the Process Templates pane, on the Global tab, locate the Automation: Enabled Rules folder. Inside this folder, locate your rule set:
    <XX>_RBA_Job > <XX>_Rule_Set_Group > <XX>_Rule_Set_Manual
  7. In the Input Files pane, select the Type Brochure.pdf file. Drag it to your <XX>_Rule_Set_Manual rule in the Process Templates pane. Note that the rule becomes active after the input file is selected.



  8. In the Start Process dialog box, select OK.



  9. Monitor the automated refine process.

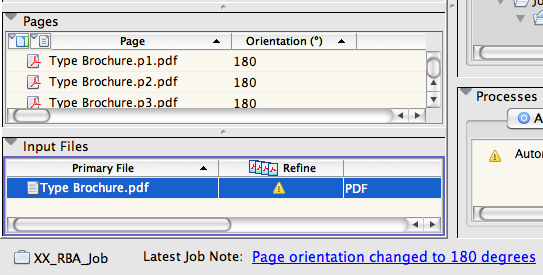

  10. View the Pages pane to verify that the Orientation column displays 180 degrees.
  11. In Job Manager, verify the automatic addition of a job note.



  12. In the Pages pane, select all refined PDF pages. Right-click a selected page, and choose Delete Page.
  13. In the Input Files pane, right-click the input file and choose Remove Input.
