  1. In Rule Set Manager, right-click <XX>_Rule_Set_Group and choose New Rule Set.

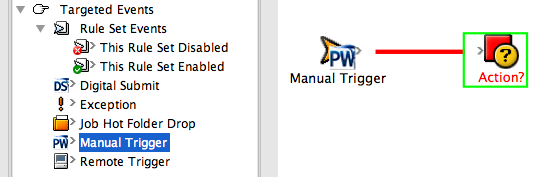

  2. On the Events tab, locate Manual Trigger: Targeted Events > Manual Trigger
  3. Drag the event onto the workspace.



  4. On the Actions tab, locate Refine Input File:
    Prinergy Actions > Input File Actions > Refine Input File
  5. Drag Refine Input File to the Action icon (center of the green box).
  6. Double-click the red line separating the event and the action..
  7. In Rule Parameters Editor, in the Process Template Path box, click the red text (Enter a Value).
  8. Click the Edit Value icon to access the Parameter Value dialog box.
  9. In the Parameter Value dialog box, select the process template: Refine > Refine > 1stRef-Normz
  10. Click OK.
  11. In Rule Parameters Editor, click OK.
