  1. On the Events tab, locate Page Set Full: Prinergy Events > Page Set Events > Page Set Full
  2. Drag Page Set Full to the workspace. This event will start the rule when a page set is fully assigned with PDF pages,
  3. On the Actions tab, locate Import Imposition: Prinergy Actions > Imposition Actions > Import Imposition
  4. Drag Import Imposition to the Action icon (center of the green box).
  5. Double-click the red line separating the event and the action.
  6. In the Process Template Path box, click the Edit Value icon (...) to access the Parameter Value dialog box.
  7. In the Parameter Value dialog box, select the ImportAll process template. Click OK.
  8. In the Imposition File box, click the Edit Value icon (...) to access the Parameter Value dialog box.
  9. In the Parameter Value dialog box, locate //AraxiVolume_Server_J on Server/Jobs/<XX>_RBA_Job/UserDefinedFolders/Imposition Plans/TypeBrochure.pjtf.
  10. Click the Add to List button. Click OK.
  11. In the Page Set Name box, type RBA page set.



    This identifies the name of the page set to be used by the imposition plan. If the page set name is specified here, and a page set of that name already exists, the imposition will use the existing page set. Otherwise, a new page set with this name is created. If no page set name is specified, a new page set is created with a unique name.

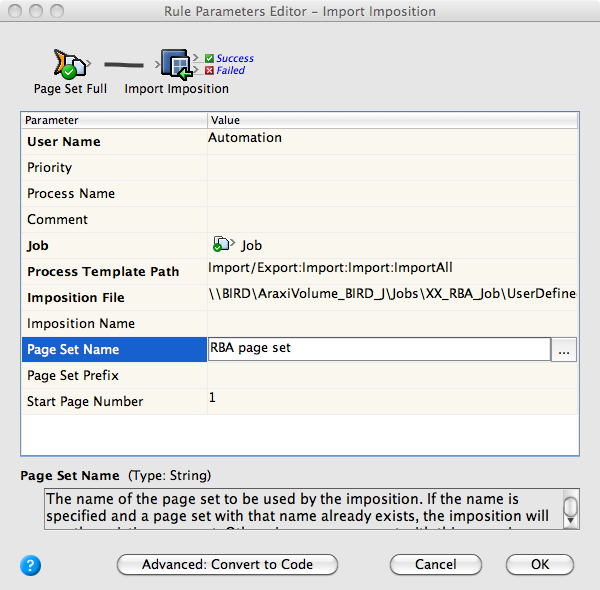

  12. In Rule Parameters Editor, click OK.
