Experience has shown that pixel feathering as a result of resampling has a neglible effect on the quality of processed LAMS flexo plates and no discernable effect on the quality of final printed samples. In blind viewing tests, flexo specialists have been unable to distinguish undistorted print samples from resampled print samples. See examples below.
The samples were imaged on a Prinergy Powerpack workflow system. Plates were imaged on a ThermoFlex LAMS device on .067" (1,7 mm) solvent wash media. Samples were printed on a narrow-web press on coated stock.
4pt type sample
Note: 4 pt serif type is considered extremely small for flexo. FIRST specifies a minimum type size of 6 pt for narrow web paper.
4pt type sample, 1-bit TIFF files

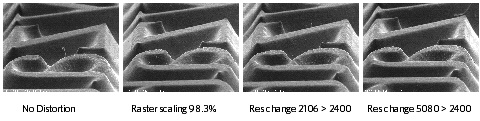

4pt type sample, SEMs (scanning electron micrographs) of processed plates

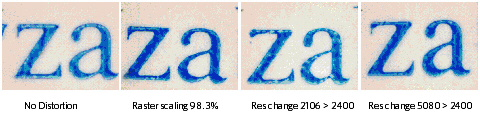

4pt type, final print samples
Straight lines (standard slur target)

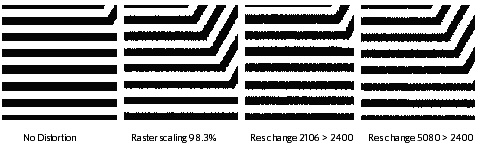

Straight lines, 1-bit TIFF files

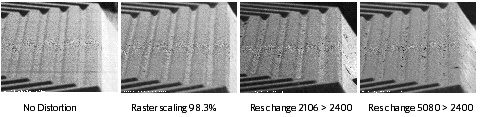

Straight lines, SEMs of processed plates

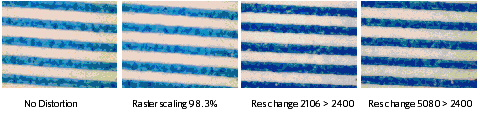

Straight lines, final print samples
Nominal 5% halftone dot

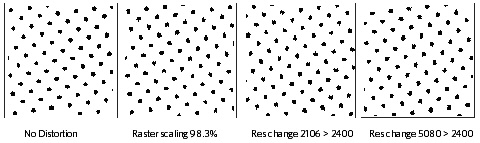

Nominal 5% halftone dot, 1-bit TIFF files

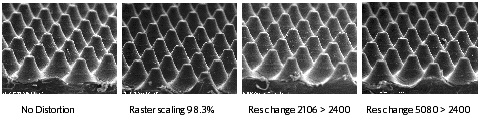

Nominal 5% halftone dot, SEMs of processed plates

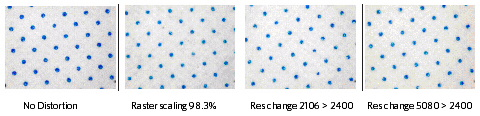

Nominal 5% halftone dot, final print samples
