Linking is performed after the version plan is created. Linking associates a refined page to the appropriate layer of a versioned page. This is how Prinergy knows from which file to extract content for a layer.
LPV jobs can have a mix of versioned pages and non-versioned pages.
The following table shows how refined pages must be linked to different layers of versioned page 1 in the retail catalog scenario:
The Refined Page | Is Linked to the |
|---|---|
| common layer |
| West layer |
| East layer |
| Esp layer |
| Eng layer |

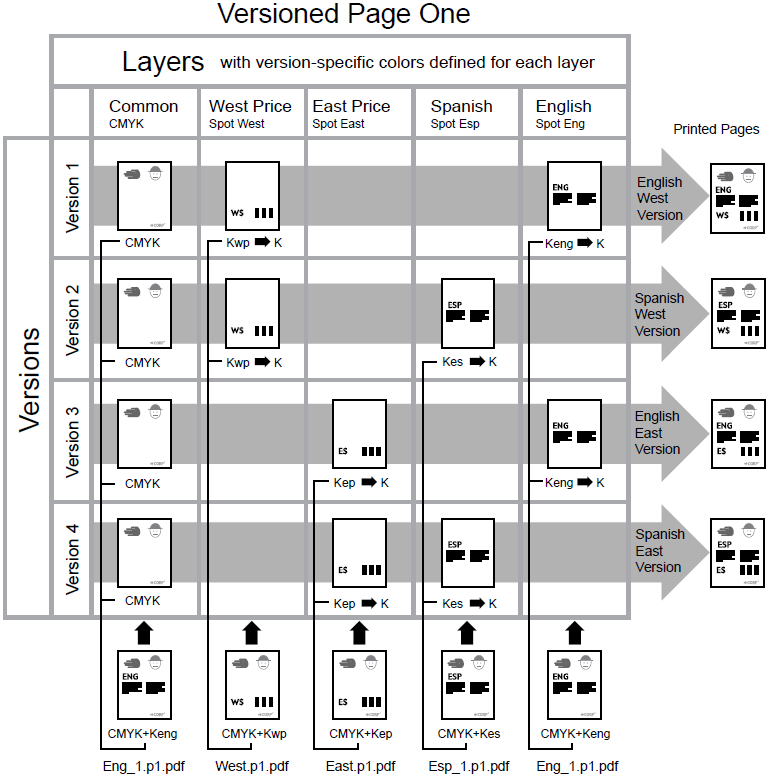

Figure 1. Example of versioned page one, containing all required layers and contributing pages for all versions of page 1
Note: The refined pages in this example represent input file model 1.
