The Administration Client is organized into tabbed groups of system administration options. Some of the options are provided in collapsible panes.

Status tab

Monitor the status of the connectors.

Configuration tab

Backup tab

View the current backup schedule and history, and run manual backups.

Process Mapping tab

Add report operation names, materials, and devices, and associate these with process templates.

Customer Mapping tab

If jobs need to be accessed or created via Kodak InSite Prepress Portal software or the MIS (or both), set up mappings between the MIS and InSite customer names, and Web-enable the jobs.

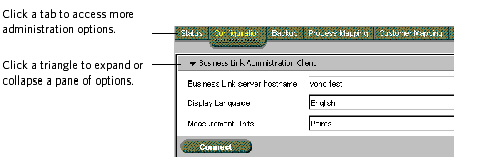

To use the Administration Client tabs, follow this procedure:

  1. Click a tab to view its options.
  2. To access the options in a pane, click the triangle beside its name.
  3. Edit all the options in the pane as needed.
  4. Click Save before moving to the next pane on the same tab.
    Important: Save your changes on each tab before clicking another tab.
  5. If you made changes on the Configuration tab, restart the connectors on the Status tab:
  6. Click Refresh.
