CAD Correct provides a number of ways to change the view to focus on one part of the Preview pane.

To zoom in to a part of the Preview pane use one of the following methods:

• From the Edit menu, select Zoom up.
• Press Alt and click the Preview pane.

To zoom out from a part of the Preview pane use one of the following methods:

• From the Edit menu, select Zoom down.
• Press Alt+Shift and click the Preview pane.

To change the view for the entire Preview pane:

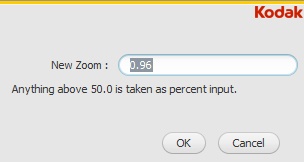

1. From the Edit menu, select Zoom to.
2. In the dialog box, in the New Zoom box, enter a value.

   Note: For example, if you enter 0.5, the die will appear in the Preview pane at 50 percent of its size. Any value above 50 is considered a percentage, so you can enter either 0.75 or 75 to view the die at 75 percent of its size.
3. Click OK.

Mirroring the file

You can mirror the input file when you plan to print on the package interior. Use one of the following methods:

• On the Station tab, select the H check box for horizontal or the V check box for vertical.
• On the Die tab, in the Mirror list, select Horizontal or Vertical.
